1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402

1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402
1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402

Hình ảnh lớn :  1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: YITAO
Chứng nhận: IATF16949
Số mô hình: 1V 9297
Thanh toán:
Số lượng đặt hàng tối thiểu: 50
Giá bán: Negotiable in person
chi tiết đóng gói: thùng carton
Thời gian giao hàng: 30
Điều khoản thanh toán: T/T
Khả năng cung cấp: 5000 miếng/tháng

1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402

Sự miêu tả
Số OE: W01-358-9297,1T15M-8,910-17.5P520,1R12-402,1S12-029,566241007,5662 41012,566243097,131112,39297CPP,8 Kiểu: Xe tải không khí mùa xuân
Ứng dụng: Đối với hệ thống treo khí xe tải đóng gói: Đóng gói trung lập hoặc đóng gói tùy chỉnh
Tình trạng: Mới Bảo hành: 1 năm
Số lượng đặt hàng tối thiểu: 50 miếng Cấu hình niêm phong: Tấm bìa uốn + Tấm niêm phong lưu hóa
Vật liệu: Cao su Vật liệu pít-tông: nhựa
Làm nổi bật:

Truck Air Spring for Firestone W01-358-9297

,

Truck Air Spring compatible with Contitech 910-17.5P520

,

Truck Air Spring replacement for Goodyear 1R12-402

1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402
Product Overview

1V 9297 Truck Air Spring manufactured to specifications matching Firestone W01-358-9297 / ContiTech 910-17.5P520 / Goodyear 1R12-402. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9297 W01 358 9297 / W013589297 / W01-358-9297 / W01358-9297 / W01-3589297
Firestone 1T15M-8 1T15M 8 / 1T15M8 / 1T15M-8
Contitech 910-17.5P520 910 17.5P520 / 91017.5P520 / 910-17.5P520
Goodyear 1R12-402 / 1S12-029 1R12 402 1S12 029 / 1R124021S12029 / 1R12-402/1S12-029
Goodyear 566241007/566241012/566243097 566241007 566241012 566243097 / 566241007566241012566243097 / 566241007/566241012/566243097
Airtech 131112/39297CPP 131112 39297CPP / 13111239297CPP / 131112/39297CPP
Triangle 8520/6391 8520 6391 / 85206391 / 8520/6391
Hendrickson Truck 64651-2 64651 2 / 646512 / 64651-2
Hendrickson 50898-1&2 50898 1&2 / 508981&2 / 50898-1&2
Note Bracket 6042/6044-new Bracket 6042 6044-new / Bracket60426044-new / Bracket 6042/6044-new
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 8.607
Package Dimensions 28*28*46.5
Natural height 565mm
Maximum height 545mm
Minimum height 194mm
Extended Height 559mm
Compressed Height 206mm
Top Plate Width 231mm
Piston Width 254mm
Product Drawing
1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.

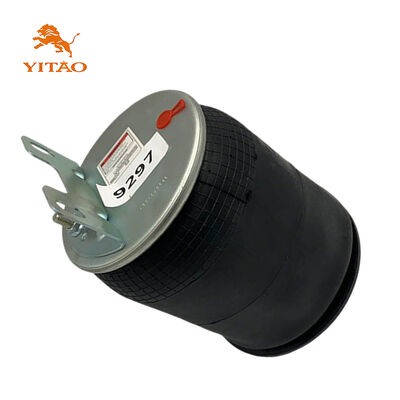

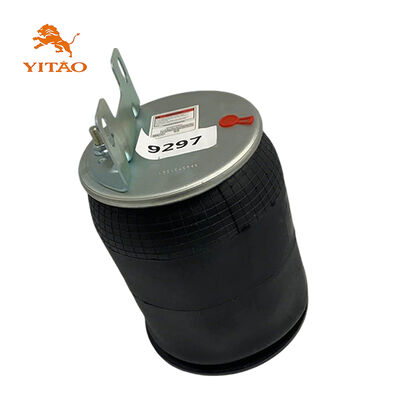

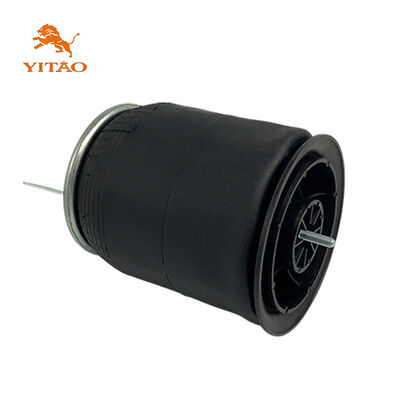

Product Images
1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 1 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 2 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 3 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 4 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 5 1V 9297 Truck Air Spring Suitable for Firestone W01-358-9297/Contitech 910-17.5P520/Goodyear 1R12-402 6
Images shown are for reference only. Actual product may vary slightly.
